14kW 48V DC Generator
DCGO-14-48-KSD1403TC-000
The Innotec Power 14kW 48V DC generator is designed to provide efficient and continuous power for off-grid, telecom, marine, military, and industrial applications. Unlike traditional diesel generators, this DC genset delivers direct 48V DC output, reducing energy conversion losses and optimizing power efficiency.
With fuel-saving technology and a compact design, this DC generator is perfect for battery charging, solar hybrid systems, and mobile power solutions. Whether you need primary power or a backup source, the 14kW 48V DC generator ensures uninterrupted energy supply.
Technical Specifications
- Max Power output 14 kW
- 48 VDC Nominal Voltage system
- L x B x H: 1200 x 800 x 1200 (mm)
- Weight: 350 kg (approx.)
- Ambient temp range: -5°C to 50°C
- Amphenol Surlok Series 300 Amp output Connectors or equivalent
- Innotec Power 360 series Flywheel Mounted PMA
- Max DC Power 14 kW
- Max Speed 3000 RPM
- 48-60 VDC Output
- Brushless & Bearing-Less design
- High Variable Frequency & Low Ripple
- Variable Speed 2200-3000 RPM
- Class H Insulation provided
- Forced Cooling with Internal Fan
- Kohler KSD1403TC series, 3 cylinder, In-line 4 stroke, Turbo Charged, Liquid cooled Diesel Engine
- Maximum Power output 18.4 kW
- Fuel consumption 245 g/kWh*
- IDI COMMON RAIL Injection system
- Variable speed 1800-3000 RPM
- Electrical starting
- Lubrication with 10W-40 API CI4 oil
- US TIER IV Final / EU Stage V emission compliance
- Variable speed DC Genset controller
- This controller has a precision PID loop providing exact matching of the optimal charging characteristics, as well as overvoltage, overcurrent, over- speed, overheat protections.
- ECU connection through J1939 CAN option
- Isolated Volt – Amp measurements
- Optimal charging, provides longer battery life
- Thermal protection, short circuit protection
- 100 event logs with time stamp and measurements
- Field adjustable parameters
- MODBUS communications
- GSM SMS message sending on fault

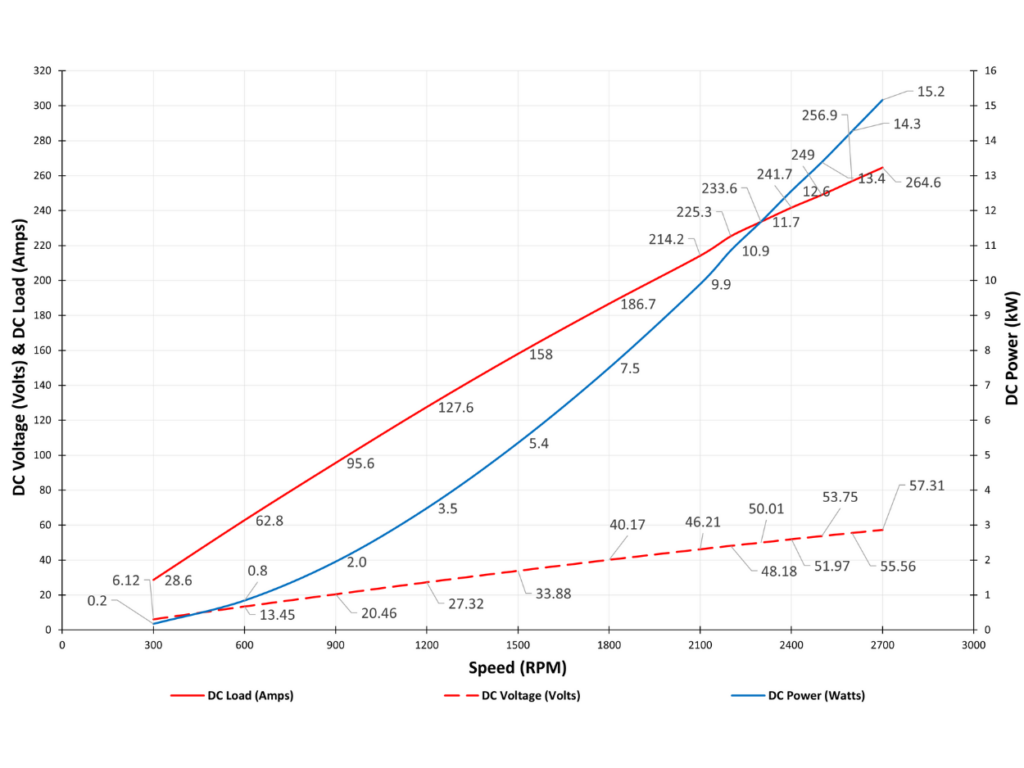

Efficiency & Load Characteristics of 14kW 24V DC Generator
Key Features of the 14kW 24V DC Generator
✔ Direct 48V DC Output – Ideal for battery banks and hybrid power setups
✔ Fuel-Efficient & Low Maintenance – Uses less fuel than conventional diesel generators
✔ Compact & Durable Design – Built for harsh environments and mobile use
✔ Low Noise & Emissions – Suitable for quiet operation zones
✔ Smart DCDG Controller – Ensures optimized power management
What Makes Our DC Generator Different?
✅ Higher Efficiency – Direct current output means less energy loss and better performance
✅ Lower Operating Costs – Uses less fuel, reducing OPEX and long-term expenses
✅ Reliable Off-Grid Power – Perfect for places without a stable power grid
✅ Customizable Solutions – Adaptable for different energy needs
